Amana Tool 49492 Carbide Tipped Corner Rounding 1/16 R x 5/8 D x 5/16 CH x 1/4 Inch SHK w/ Lower Ball Bearing Router Bit
✓In-stock orders placed by 3 PM ET ship the same business day from Vaughan, ON
⛟Shipping to Ontario & Québec: CA$11.95 · rest of Canada from CA$14.95 · free over CA$300
📅Estimated delivery 3–7 business days
↩30-day returns on unused items in original packaging — details
Buying for a business? We quote and invoice against your PO — email sales@cncrouterstore.ca
SKU: 49492 Amana Tool

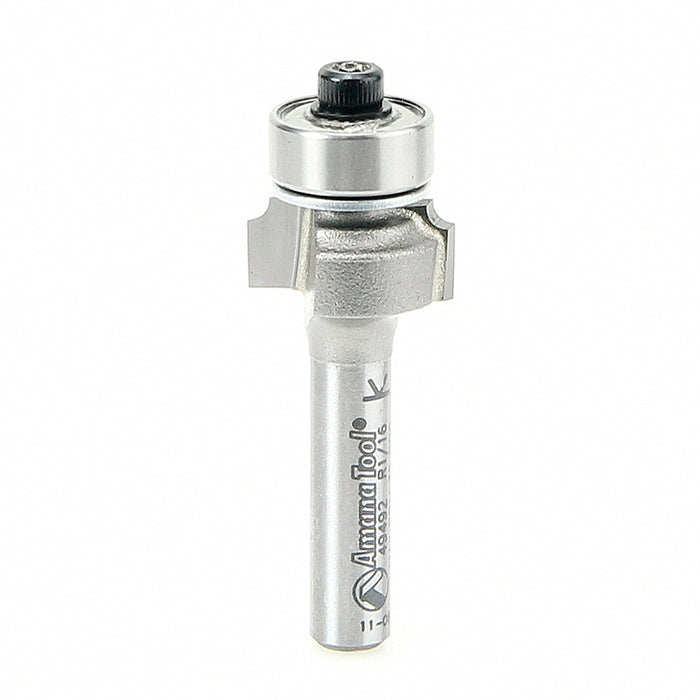

The Amana 49492 is a carbide tipped corner rounding (roundover) bit that rounds an edge to a 1/16 in. radius. The cutter is 5/8 in. in diameter with 5/16 in. of cutting height, on a 1/4 in. shank.
| Part number | Amana Tool 49492 |
|---|---|
| Type | Corner rounding bit |
| Construction | Carbide tipped |
| Radius | 1/16 in. |
| Cutting diameter | 5/8 in. |
| Cutting height | 5/16 in. |
| Shank diameter | 1/4 in. |
| Bearing | Lower (below the cutter) |
How to use it
A roundover bit eases a square edge into a smooth quarter-round of a set radius. It is the most-used edge profile on furniture, cabinet doors, shelving and signs, and it makes edges more comfortable and less likely to chip. A bearing below the cutter rides the edge of the workpiece and sets the profile, so no fence is needed on curved parts. If you raise the bit past the end of the radius, it leaves a small step above the curve, called a bead or fillet. The 4-flute versions give a smoother finish at a given feed. The miniature bits use a 3/16 in. bearing to reach into tight inside curves. For large radii, use a 1/2 in. shank in a router table and take the profile in two or more passes.
Other sizes in this range: Amana MRR108 (1/16 in. radius, 5/16 in. dia., 5/16 in. cut, 1/4 in. shank), Amana 49494 (1/16 in. radius, 5/8 in. dia., 5/16 in. cut, 1/2 in. shank), Amana MR0110 (3/32 in. radius, 3/8 in. dia., 3/8 in. cut, 1/4 in. shank), Amana 49496 (1/8 in. radius, 3/4 in. dia., 3/8 in. cut, 1/4 in. shank).
