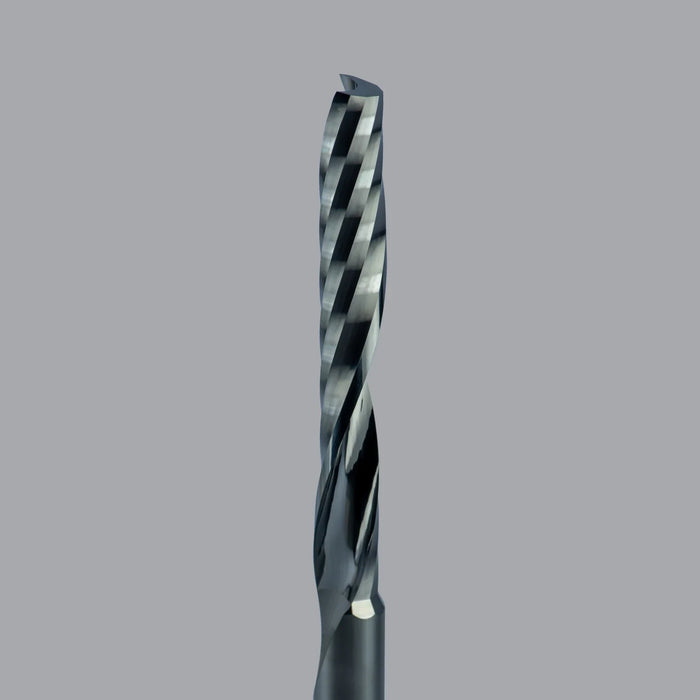

Onsrud 65-100 Series - NEW SERIES - Solid Carbide - 1 Flute - upcut O flute - Taper Core - Soft Plastic
$119.07
SKU: 65-101 LMT Onsrud
LMT Onsrud introduces a new addition to its O flute portfolio for soft plastic. The 65-100 series core geometry strengthens the tool in cut resulting in slotting depths up to 8x diameter of tool.
Features and Benefits - Polished flute for easy chip evacuation, specialized core geometry to increase strength along the cutting edge - Up to 8 times diameter roughing and finishing depths
Applications: - Roughing - Finishing
Usage: Soft Plastic
Onsrud 65-100 Series part numbers
This series is available as 8 part numbers: 65-101, 65-103, 65-105, 65-107, 65-109, 65-111, 65-115, 65-117. Select the one you need from the dropdown above. Prices shown in Canadian dollars.
| Part number | Cutting Edge Diameter | Cutting Edge Length | Shank Diameter | Price |
|---|---|---|---|---|
| 65-101 | 3/16" | 9/16" | 3/16" | CA$119.07 |
| 65-103 | 3/16" | 15/16" | 3/16" | CA$153.66 |
| 65-105 | 3/16" | 1-15/16" | 3/16" | CA$170.62 |
| 65-107 | 1/4" | 3/4" | 1/4" | CA$162.57 |
| 65-109 | 1/4" | 1-1/2" | 1/4" | CA$212.46 |
| 65-111 | 1/4" | 2" | 1/4" | CA$244.47 |
| 65-115 | 3/8" | 1-7/8" | 3/8" | CA$296.38 |
| 65-117 | 3/8" | 2-5/8" | 3/8" | CA$339.21 |
Feeds & Speeds
Based on published chip-load charts.
Full calculator →
