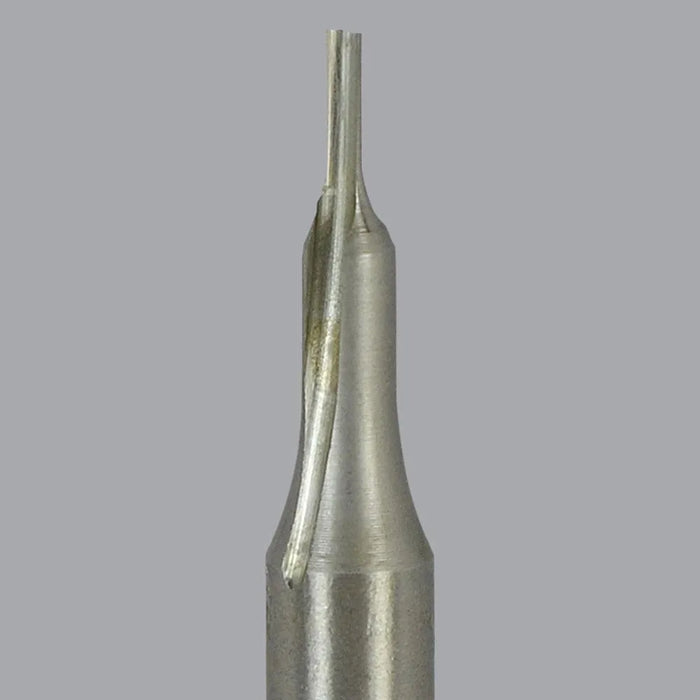

Onsrud 10-00 HSS Series O Flute Straight
$26.54
Free shipping in Canada on orders over $300 Buying for a business? We quote and invoice against your PO — email sales@cncrouterstore.ca
SKU: 10-00 LMT Onsrud
Combines an open flute design with single flute geometry to provide optimum chip removal at fast feed rates. Excellent for hand-fed operations. HSS Tool
Application: Soft plastic, Natural wood
Onsrud 10-00 HSS Series O Flute Straight part numbers
This series is available as 7 part numbers: 10-00, 10-01, 10-02, 10-07, 10-20, 10-22, 10-78. Select the one you need from the dropdown above. Prices shown in Canadian dollars.
| Part number | Cutting Edge Diameter | Cutting Edge Length | Shank Diameter | Price |
|---|---|---|---|---|
| 10-00 | 1/16" | 3/16" | 1/4" | CA$26.54 |
| 10-01 | 3/32" | 3/8" | 1/4" | CA$25.19 |
| 10-02 | 1/8" | 3/8" | 1/4" | CA$26.54 |
| 10-07 | 1/4" | 1" | 1/4" | CA$21.93 |
| 10-20 | 1/8" | 1/2" | 1/4" | CA$29.12 |
| 10-22 | 3/16" | 3/4" | 1/4" | CA$28.45 |
| 10-78 | 1/4" | 1-1/4" | 1/4" | CA$24.76 |
Feeds & Speeds
Based on published chip-load charts.
Full calculator →
