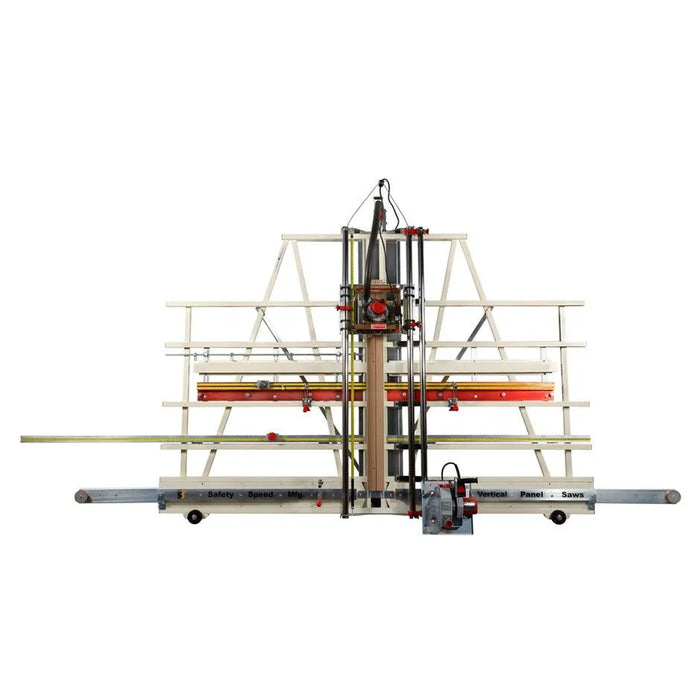

SR5A ACM Panel Saw And Router Combo
SR5A ACM Panel Saw And Router Combo

SR5A ACM Panel Saw And Router Combo

$14,339.26

SKU: SR5A Safety Speed

The SR5A panel saw/router combo allows operators to saw and rout on one vertical steel frame.

The unique design of this unit allows for accurate cutting and V-Grooving of ACM (Aluminum Composite Material) panels. Features a unique floating router with a nylon guide guaranteeing a consistent depth of cut. The saw can also be switched over to a router in less than one minute. It also features a dust system in place to collect debris while cutting and routing.

Standard Equipment:

  • 3 ¼ Hp, 15 amp industrial duty saw motor.
  • 1 ¾ Hp, 11 amp industrial duty router motor.
  • 10 ft. Welded steel frame.
  • Chrome plated 1 ¾” guide tubes.
  • 8 Nylatron roller bearing systems.
  • Adjustable vertical and horizontal rulers.
  • Quick change from vertical and horizontal cutting.
  • Thin material pressure guard.
  • Injection molded plastic material rollers.
  • Counterweight system.
  • Adjustable floating router head.
    • MID-WAY FENCE™ with stop.
    • 4 material clamps.
    • 2 blind dado stops.
    • Wheels.
    • Fixed Stand.
    • Extensions.
    • Left and right quick stop gauges.
    • MID-WAY FENCE™ flip stop.
    • Dust hood and hose kit.
    • Hold down bar.
    • Specialty saw blade and router bit for v-grooving



















    Only 95 left!
     Max. Cross Cut
    62" / 1575mm
    Max. Rip Cut
    Unlimited
    Max. Cut Thickness
    1 3/4" / 45mm
    Cut Accuracy, Straight and Square
    1/64" / .4mm
    Saw Blade Diameter
    8" / 210mm
    Motor
    15 amp, 120V, 220V
    Router Motor
    11 amp, 120V, 220V
    Frame Length
    120" / 3050mm
    Material
    Acrylic, Aluminum Composite Panel, Aluminum Panel, Corrugated Plastic, Foamed Board Soft, Laminate, MDF Panels, PVC, Solid Surface, Veneer, Wood
