Amana Tool 51761 SC CNC Spiral Double O Flute, Plastic Cutting 1/8 Dia x 1/2 CH x 1/8 Shank x 2 Inch Long Up-Cut Router Bit
✓In-stock orders placed by 3 PM ET ship the same business day from Vaughan, ON
⛟Shipping to the US: US$14.95 · free over US$300 · duties and taxes shown at checkout
📅Estimated delivery 3–7 business days
↩30-day returns on unused items in original packaging — details
Buying for a business? We quote and invoice against your PO — email sales@cncrouterstore.ca
SKU: 51761 Amana Tool

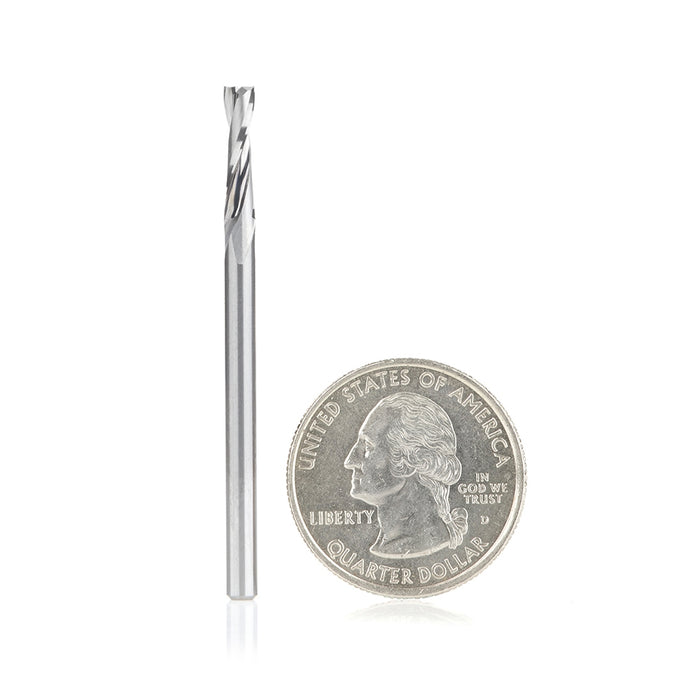

The Amana 51761 is a solid carbide double O-flute plastic cutting bit with a 1/8 in. cutting diameter, 1/2 in. of cutting length and 2 in. overall, on a 1/8 in. shank.
| Part number | Amana Tool 51761 |
|---|---|
| Type | Double O-flute plastic bit |
| Construction | Solid carbide |
| Cutting diameter | 1/8 in. |
| Cutting height | 1/2 in. |
| Shank diameter | 1/8 in. |
| Overall length | 2 in. |
How to use it
O-flute bits are made for plastics. The polished, open flute carries chips away from the cut before they can re-melt and weld back onto the edge, which is what leaves a gummy, frosted finish. This two-flute version takes twice the feed per revolution of a single O-flute, so it suits production runs in acrylic, PVC, polycarbonate, HDPE and other sign and fabrication plastics. These are CNC-only bits, meant for machines with powered feed. Run a chip load heavy enough to make chips, not dust. Too slow a feed is the most common cause of melted edges in plastic.
Other sizes in this range: Amana 51781 (1/8 in. dia., 1/2 in. cut, 1/8 in. shank), Amana 51762 (1/8 in. dia., 1/2 in. cut, 1/4 in. shank), Amana 51766 (1/8 in. dia., 3/4 in. cut, 1/4 in. shank), Amana 51782 (1/8 in. dia., 1/2 in. cut, 1/4 in. shank).
Running this on a CNC router? Work out spindle speed and feed rate for your material in our feed rate calculator, or describe a bad cut to Cut Doctor.
